Why High Speed Silent Corrugator Conveyor Belt Is Essential

This type of corrugator conveyor belt not only possesses excellent strength and toughness but also effectively reduces noise generated during operation. Its unique structure makes it an indispensable component in various mechanical equipment.

So, how exactly does this conveyor belt work?

First, its material is typically high density cotton fiber, which not only withstands greater tensile force but also effectively absorbs vibration, thus achieving a silent effect.

Second, the high speed silent cotton corrugator conveyor belt employs an extremely fine weaving process, using a special weaving method that ensures each fiber is tightly bonded, avoiding friction and wear that may occur during high speed operation.

This design guarantees its stability and durability at high speeds.

When the equipment is operating, the cotton corrugator conveyor belt, with its unique material and structure, can effectively reduce noise.

The belt can convert mechanical vibration into a small amount of heat, reducing noise transmission.

In the packaging and transportation industry, high speed, silent, and stable corrugator conveyor belts are widely used.

They are commonly used for cargo transport, offering greater safety and being more environmentally friendly and economical compared to traditional corrugator conveyor belts.

Although high speed cotton corrugator conveyor belts are widely used in many industries, their application in the corrugated cardboard production field places higher demands on these conveyor belts.

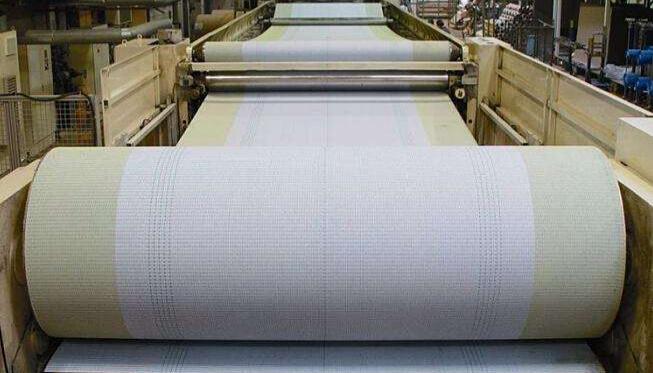

In corrugated board production, corrugator conveyor belts are primarily used in the double facer area. Once the single faced corrugated paper and face paper are sized, they enter the double facer.

At this point, the high speed corrugator conveyor belt covers the board, working in conjunction with the hot plate to provide continuous and uniform pressure throughout the conveying process, ensuring stable contact between the board and the hot plate.

The corrugator conveyor belt needs to operate under high temperature, high tension, and high speed conditions for extended periods to help the starch adhesive gelatinize and promote rapid evaporation of moisture from the board.

Therefore, the operational stability of the corrugator conveyor belt directly affects board quality and production efficiency.

In this process, the corrugator conveyor belt primarily undertakes the following tasks:

• Smoothly conveying the cardboard, reducing deviation and vibration;

• Providing uniform pressure to promote full gelatinization of the starch adhesive;

• Improving heat transfer and moisture removal efficiency, accelerating cardboard drying;

• Reducing quality risks such as warping, bubbling, and poor bonding.

Therefore, a stable corrugator conveyor belt helps ensure continuous equipment operation and results in smoother, more firmly bonded corrugated cardboard being produced.

In the corrugated cardboard production line, the corrugator conveyor belt needs to transport cardboard under complex operating conditions, such as long term high temperature, continuous tension, and high speed operation.

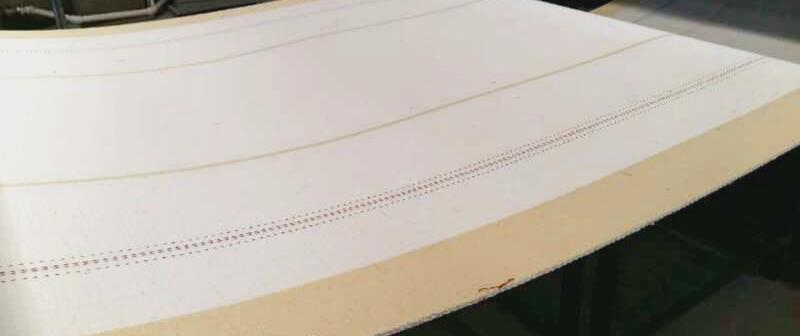

Therefore, a corrugator conveyor belt usually needs to be specially designed in terms of material selection, weaving structure, air permeability, and dimensional stability.

Compared to ordinary conveyor belts, the high speed silent corrugator conveyor belt offers better flexibility and higher dimensional stability, enabling it to adapt to continuous, high-speed corrugated paper production environments.

Furthermore, due to the excellent moisture absorption, flexibility, and abrasion resistance of cotton fibers, the high speed corrugator conveyor belt can withstand greater operating tension and maintain stable conveying during long term operation.

The corrugator conveyor belt needs to maintain continuous contact with the hot plate, guide rollers, and paperboard for extended periods. So, its abrasion resistance directly affects its service life and maintenance costs.

Appropriate air permeability helps the paperboard quickly expel moisture, improving drying efficiency. This helps the corrugator conveyor belt reduce problems such as paperboard warping, bubbling, and poor adhesion.

The uniform weave structure reduces friction and vibration during operation, providing quieter and more stable operation in high speed production environments. This not only helps improve the durability of the corrugator conveyor belt but also enhances its adaptability to different environments.
