Application of Corrugating Roll in Corrugated Cardboard Production Line
Corrugating roll is the core forming components of corrugated board production lines and are used in the packaging industry, playing a crucial role, especially in carton manufacturing.
During production, the upper and lower corrugating rolls mesh precisely to press and shape the corrugating medium, forming uniform corrugated flutes such as A, B, C, E, and F profiles. These flute structures provide corrugated board with excellent compressive strength, cushioning performance, and lightweight properties, making it an ideal material for packaging, transportation, and product protection.
The quality and precision of the corrugating roll directly influence the flute formation, bonding strength, and overall performance of corrugated cardboard, making it one of the most important components in a corrugator machine.
Working Principle of Corrugating Roll

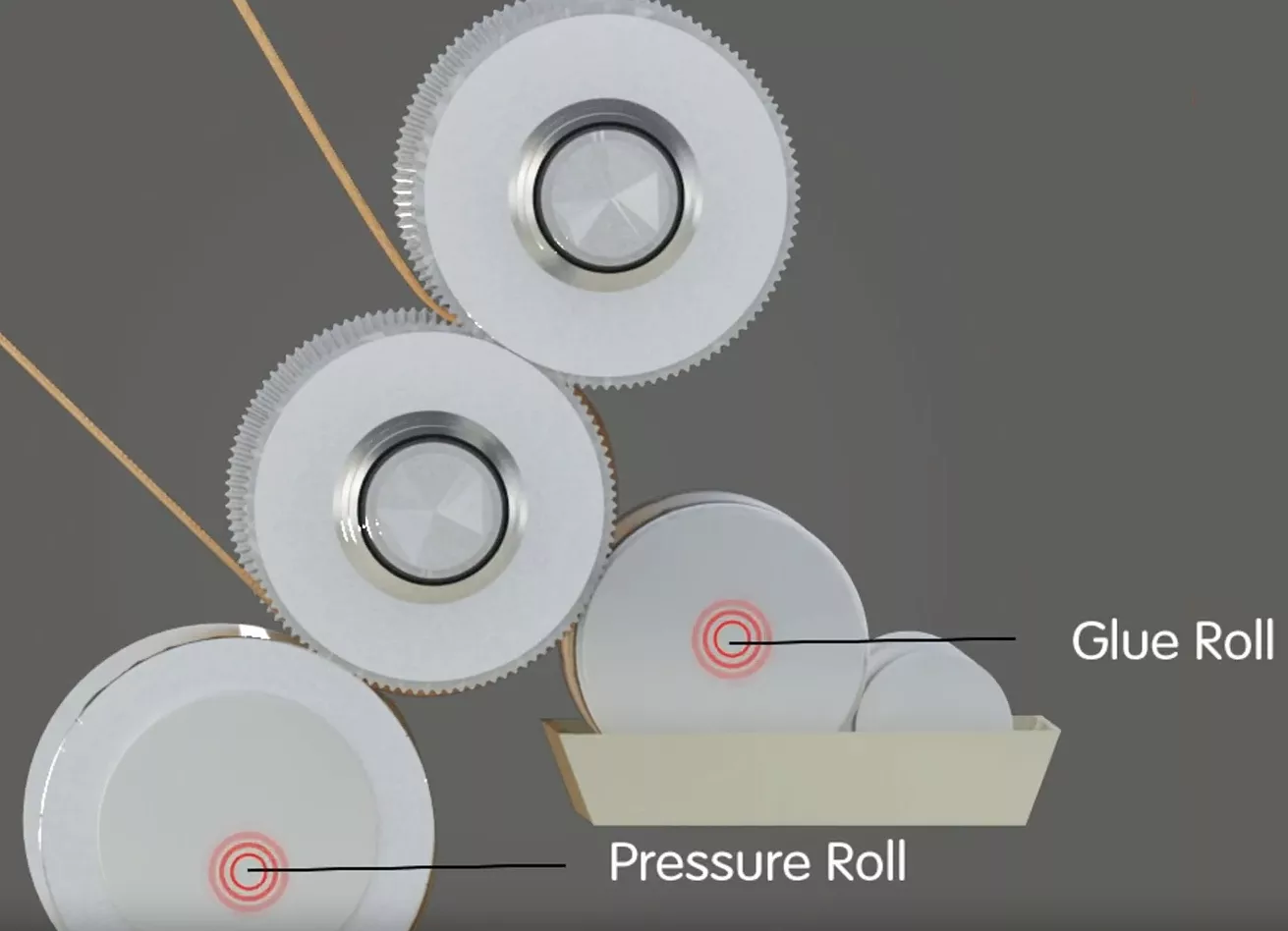

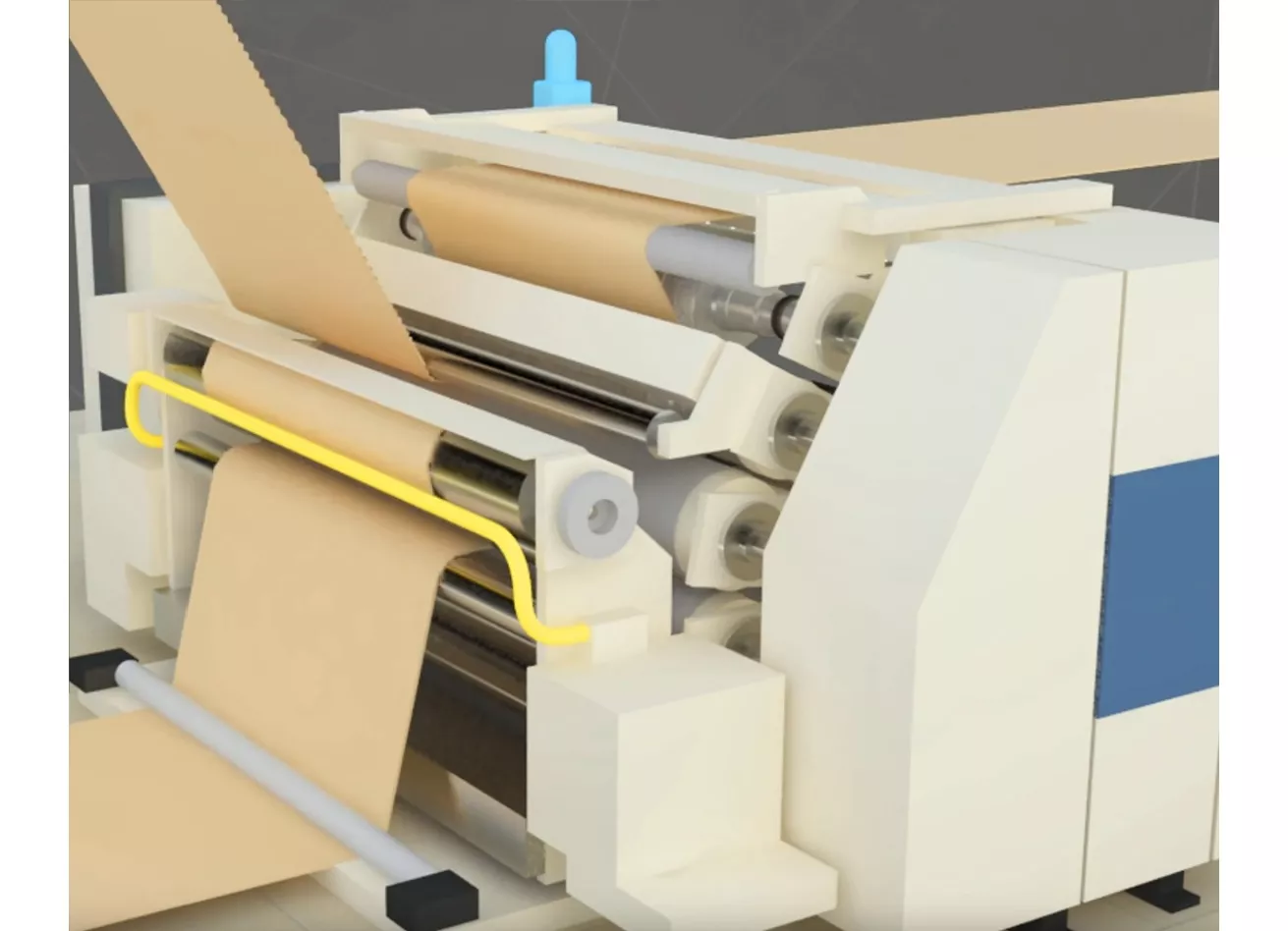

The preheated raw paper enters the core part of the single facer -- the corrugating roll group. The corrugating roll set consists of two upper and lower rolls, with precise corrugated tooth patterns engraved on the surface. As the paper passes between the meshing corrugating rolls, it is pressed and formed into a uniform corrugated flute structure. The combination of pressure, temperature, and precise flute geometry shapes the paper into the required corrugated profile.
During the forming process, proper control of roll temperature, pressure, and alignment is essential. These factors directly affect the flute formation, bonding quality, and overall strength of the corrugated board, ensuring stable production and consistent cardboard quality.
SUN HONG Corrugating Roll Ranges

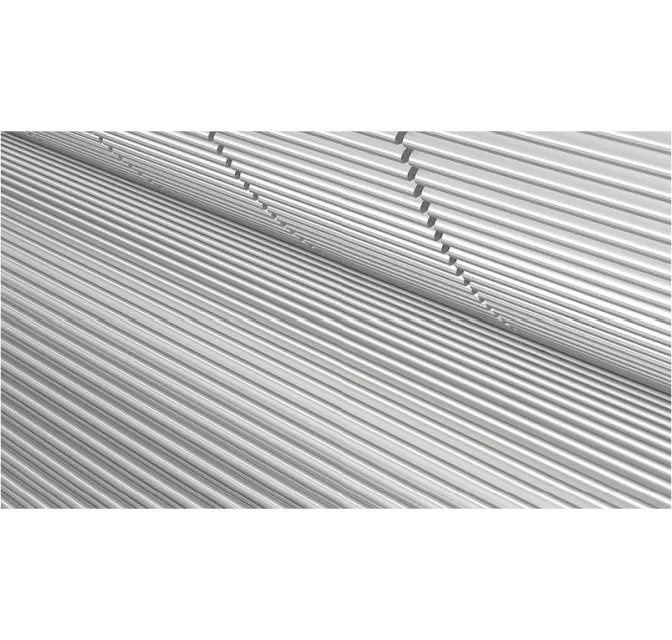

Tungsten Carbide Corrugating Roll

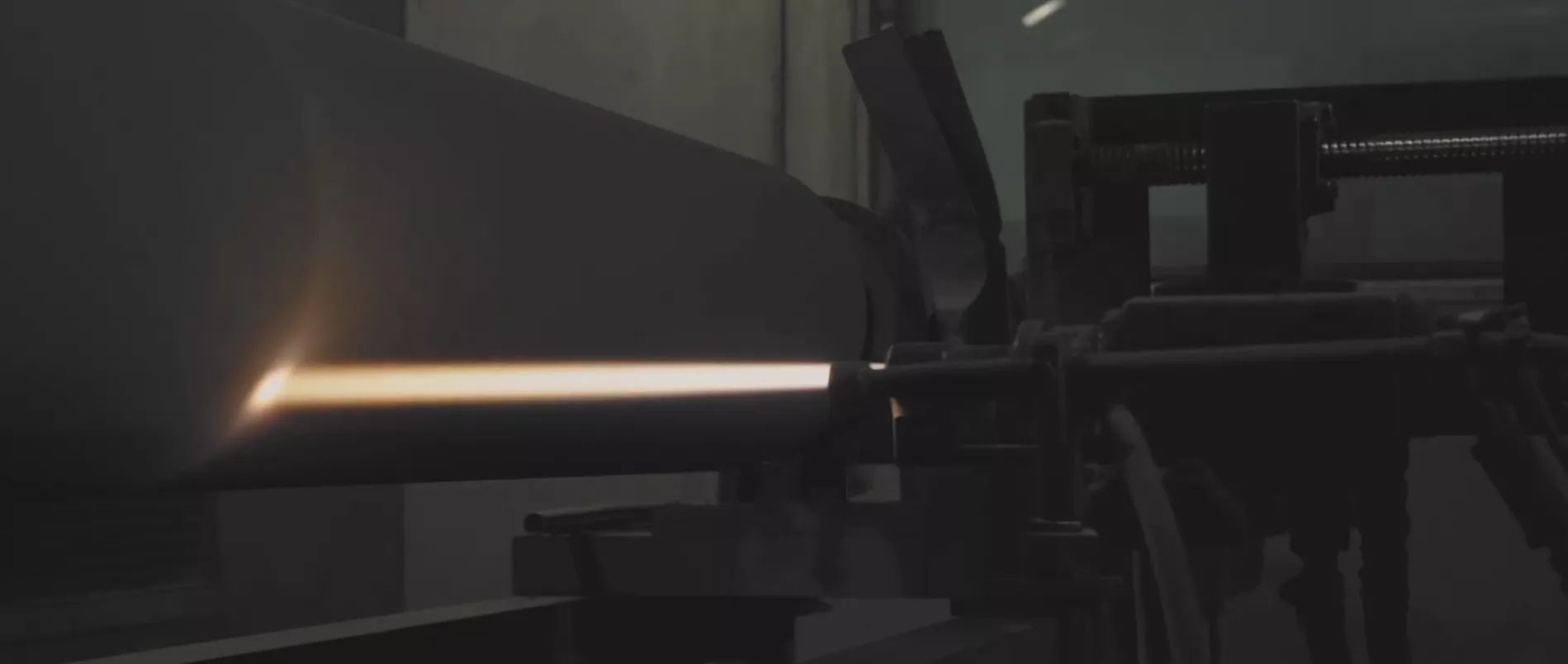

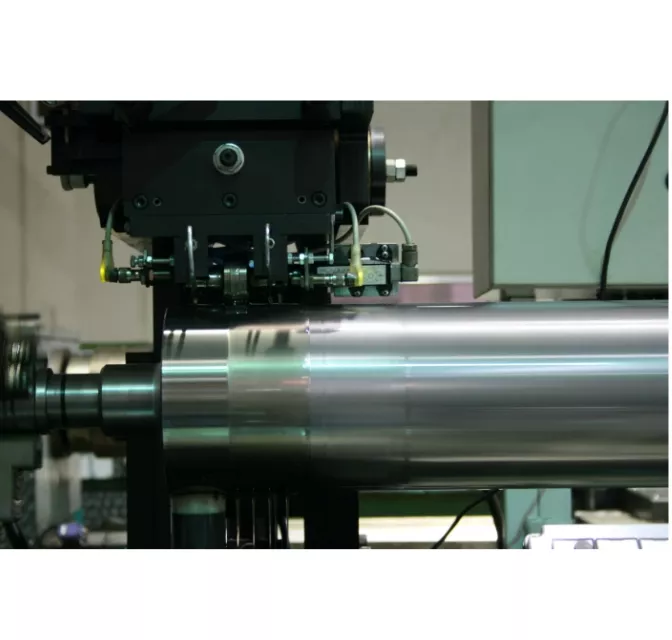

The tungsten carbide corrugating roll is manufactured using advanced tungsten carbide coating technology combined with high-precision corrugating roll machining. This technology significantly improves the wear resistance and service life of the corrugating roll.
Compared with conventional corrugating rolls, tungsten carbide corrugating rolls offer lower paper consumption, longer service life, stable flute formation, and improved operational performance. These advantages help corrugated cardboard manufacturers achieve higher production efficiency and better economic benefits.

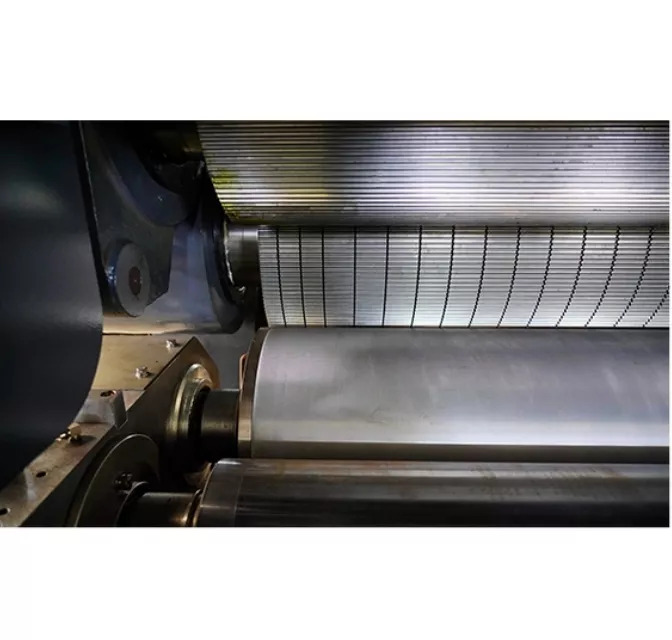

Surrounding Heating Corrugating Roll
Widely applicable to the current market demand for efficient and energy-saving, as well as multi variety small batch order structures, to help customers better produce high-quality cardboard.
Crown Pressure Roll
Specially designed medium to high pressure rollers ensure that they work together with corrugating rolls to achieve the best production results.
