High Speed Corrugator Belt with Low Noise

QR code
Brand Sun Hong
Original China
Application Corrugated Cardboard Machine
Material Synthetic
+86 13951349332
Reservation Now
Detail

High Speed Corrugator Belt with Low Noise

This high speed corrugator belt with low noise is suitable for cardboard production speed around 200m/min


Technical Parameter

ModelSHWSD-9G
Thickness9±0.3 mm
Width1400-3200mm
Heat resistance200℃
Tensile strength65 Mpa
Coefficient of friction≥0.4μ
Weight7.5±0.3 kg/㎡
Air permeability2.0 m³/㎡/min

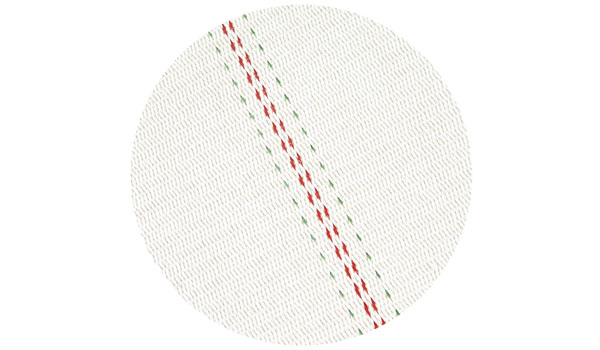

high speed corrugator belt with low noise.jpg
