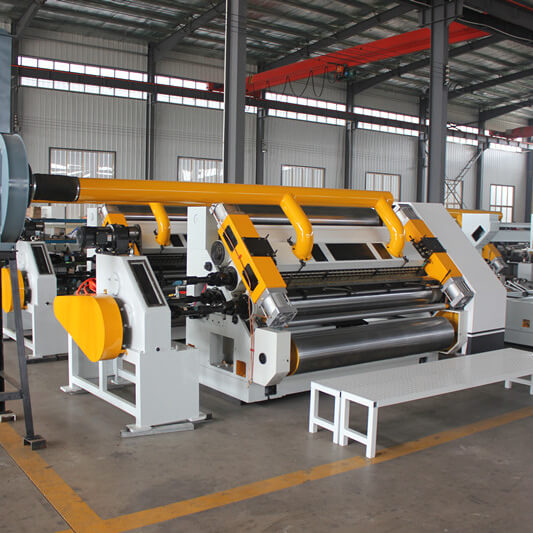

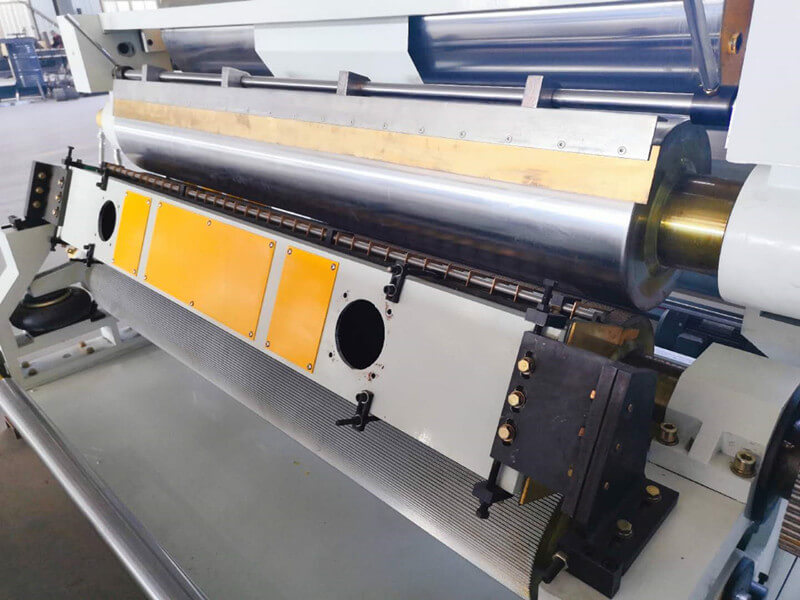

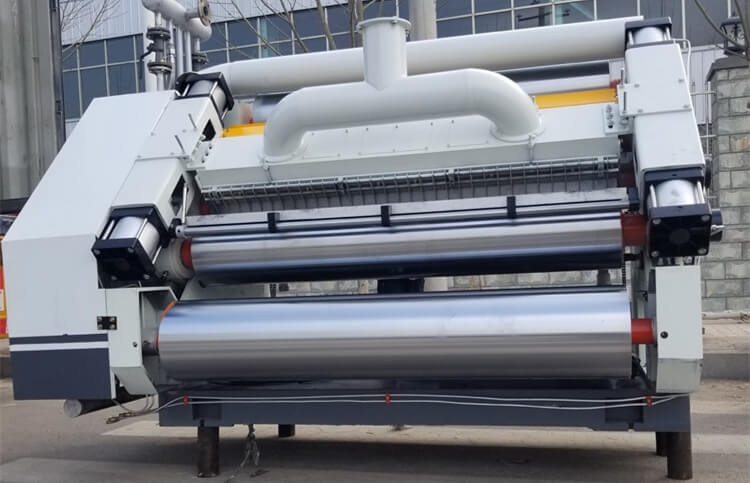

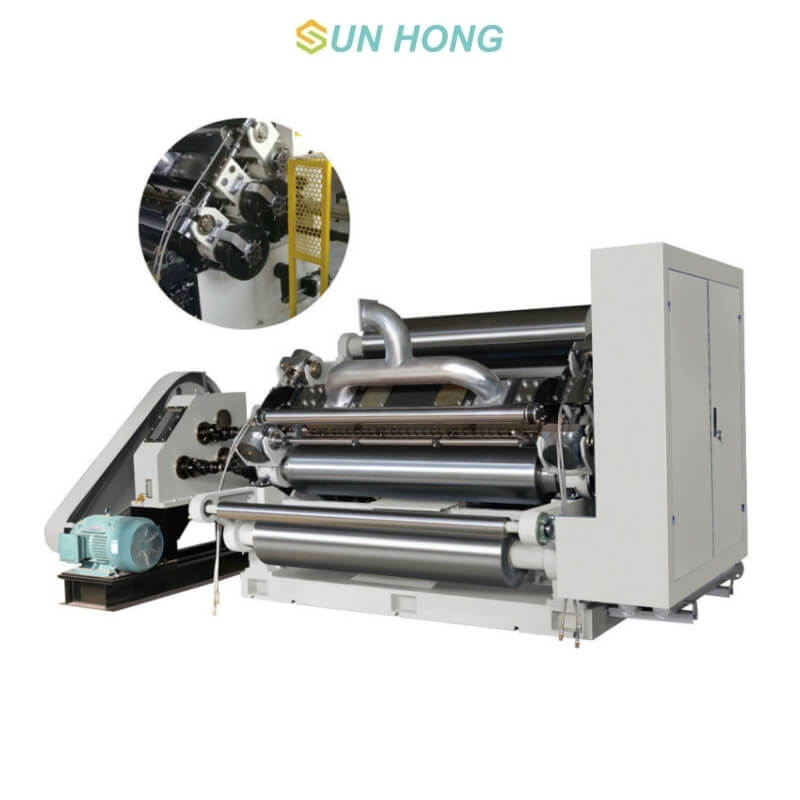

Single Facer for Corrugated Cardboard Production
Single facer is a key equipment in the corrugated cardboard production line, mainly used to produce corrugated core paper. Single facer forms corrugated cardboard by processing corrugated base paper into a corrugated structure and bonding it with the surface paper. It is widely used in cardboard paper in the packaging industry.
Advantages of Single Facer
(1) Fast bonding. Sun Hong's single facer is equipped with a glue coating device, which can evenly apply adhesive to achieve fast and firm bonding between corrugated base paper and surface paper, ensuring the strength of corrugated cardboard.
(2) Stable performance and reduced downtime. Our single facer has a stable and durable structure, stable operation, good continuous production capacity, and reduced failure rate and maintenance time.
(3) Intelligent control and easy operation. Sun Hong adopts a modern PLC intelligent control system with intuitive operation and edge adjustment parameters to reduce manual intervention.
Single Facer Technical Parameter
| Effective width | 1600mm |
| Operation direction | left or right |
| Design speed | 100m/min |
| Temperature range | 200-260 |
| Corrugated flute | A,B,C,E |
| Corrugated roll diameter | φ280mm |
| Pressure roll diameter | φ284mm |
| Glue roll diameter | φ216mm |
| Main drive motor | 7.5KW |
