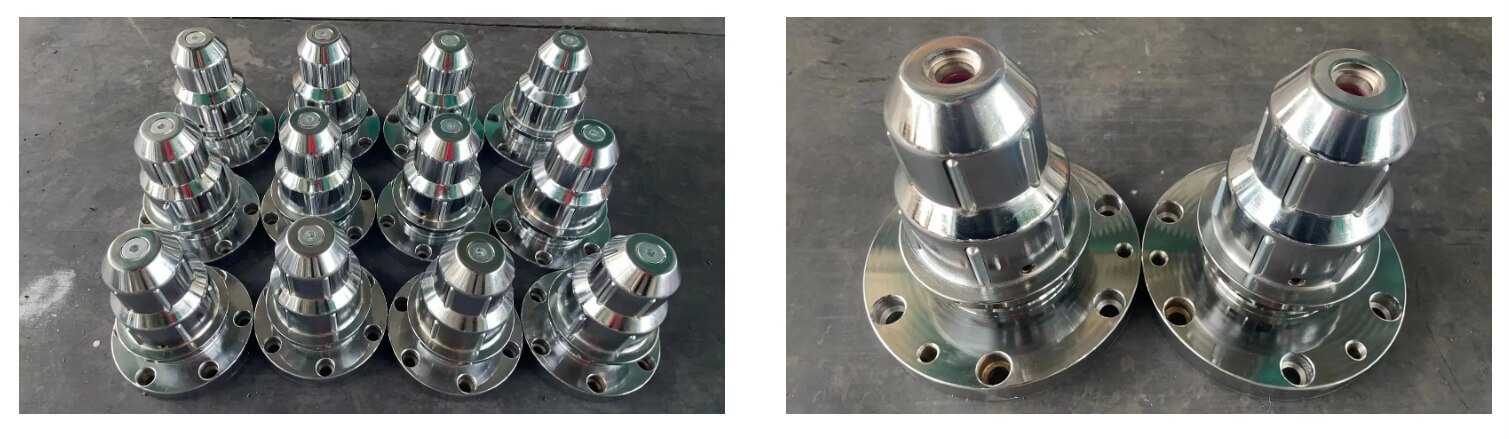

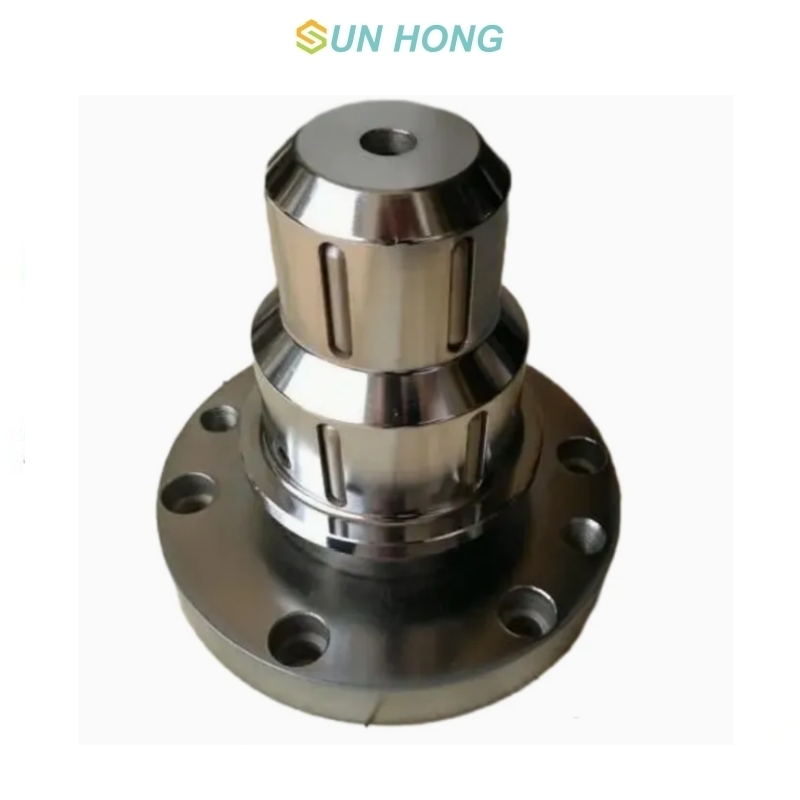

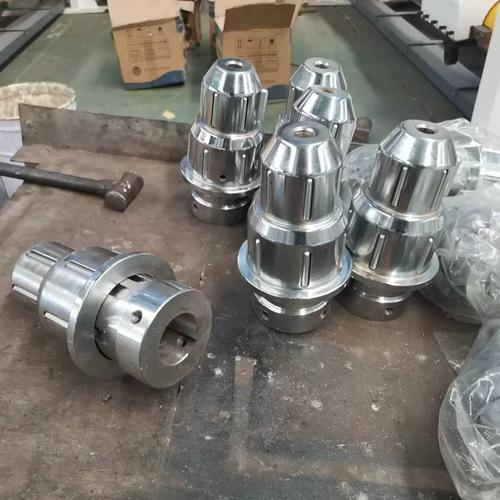

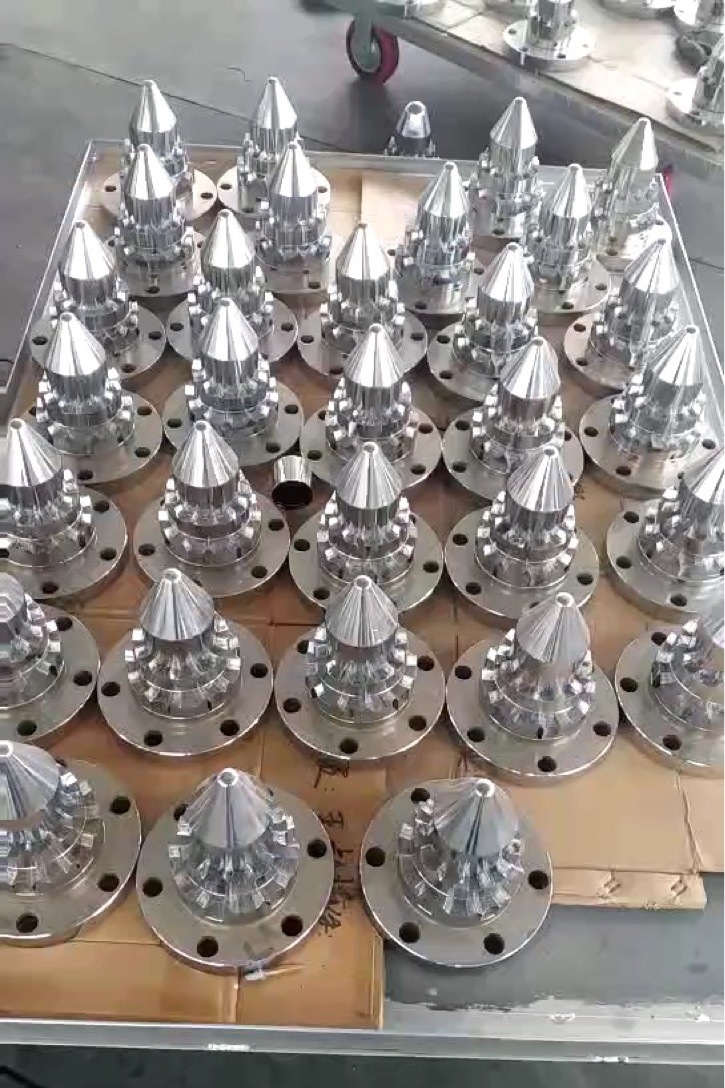

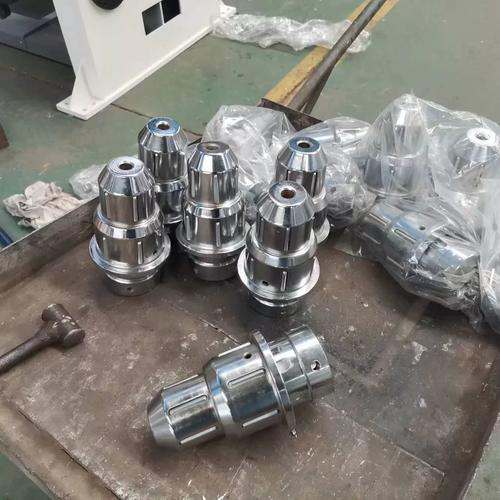

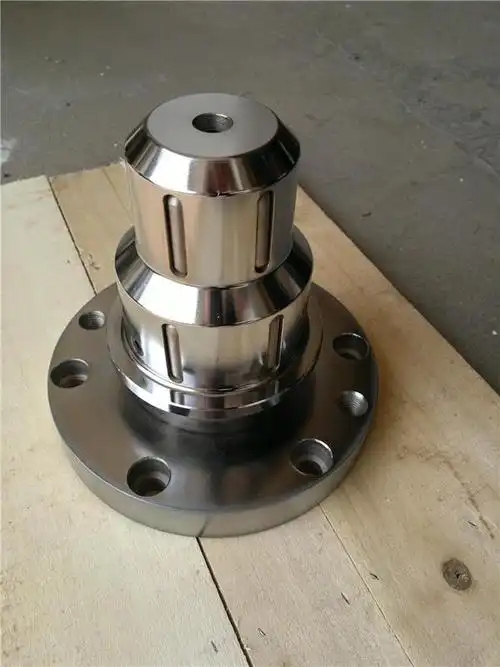

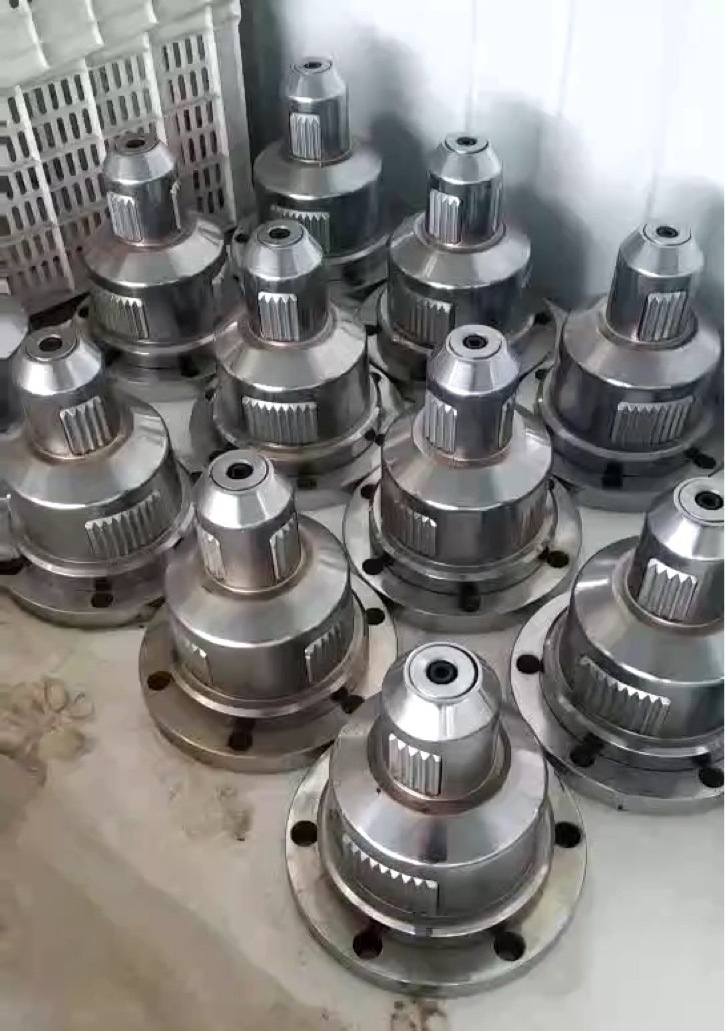

Expansion Type Mechanical Chuck

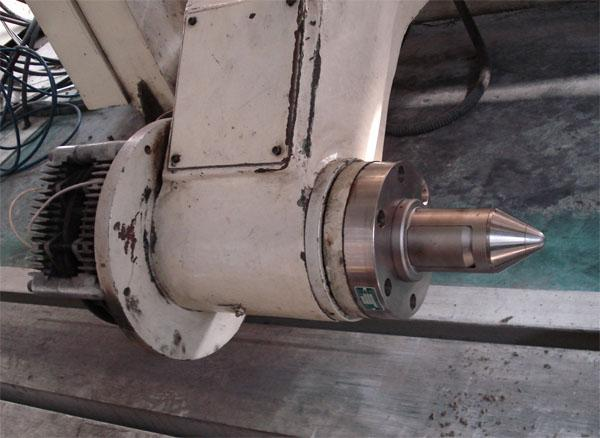

The expansion type mechanical chuck is used to stably clamp the paper core in the corrugated cardboard production line, and prevent the paper roll from loosening or shifting during the production process. It is an important equipment on the production line and greatly improves production efficiency. If the traditional air shaft is used, there may be unstable air pressure and air leakage, but the expansion type mechanical chuck can avoid these problems.
Advantages of The Expansion Type Mechanical Chuck
(1) High tight clamping to avoid feeding, can provide uniform clamping force, and the chuck can apply pressure evenly under the same load to ensure the stability and continuity of the production process.
(2) Suitable for a variety of paper core sizes, with strong flexibility, Sun Hong's expansion type mechanical chuck can be adjusted, and a variety of specifications of paper rolls are widely used in different types of corrugated cardboard production lines.
(3) Sun Hong's expansion type mechanical chuck has extremely strong durability and corrosion resistance. It can still maintain a good clamping effect under high load operation environment. Its long term stable performance helps to extend the service life of production line equipment.
Expansion Type Mechanical Chuck Solution

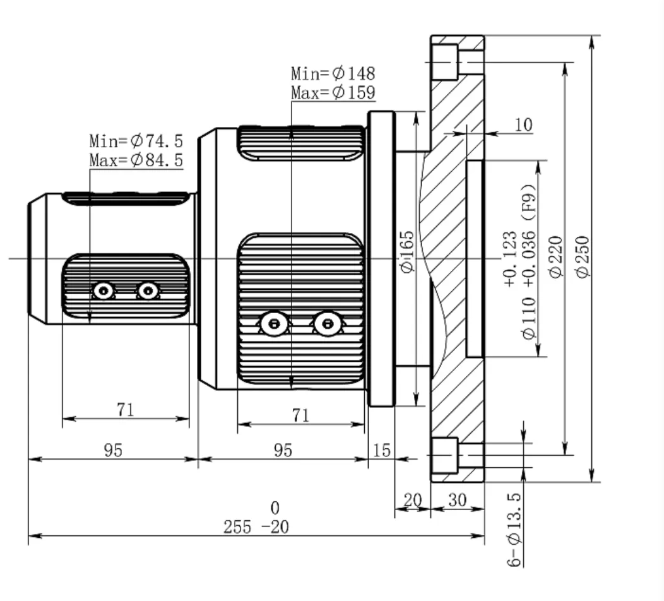

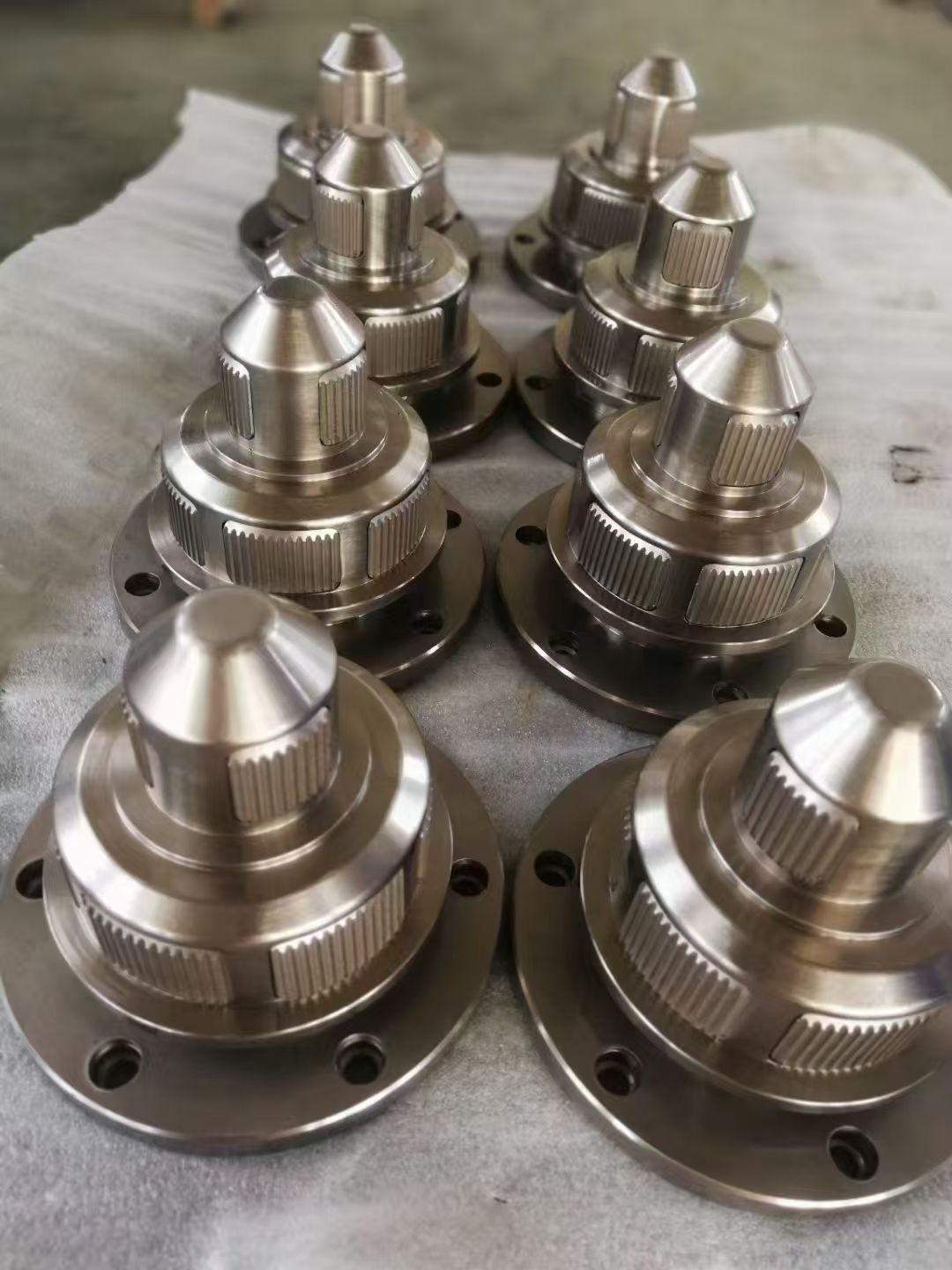

1. Shaft-less design structure improves the speed of winding and unwinding; 2. Wide sliding plate supports the inner hole of the core, large contact area, smooth rotation. 3. It is not easy to produce slippage and damage the core bore; 4. The surface of the sliding plate is equipped with concave and convex lines to increase the locking force; 5. Taper surface top tightening, no empty stroke, smooth starting and stopping tensioning force; 6. Built-in spring, automatic reset when loosened; 7. Integral forging alloy steel spindle, wide load range. |
|
