Single Face Corrugated Roll

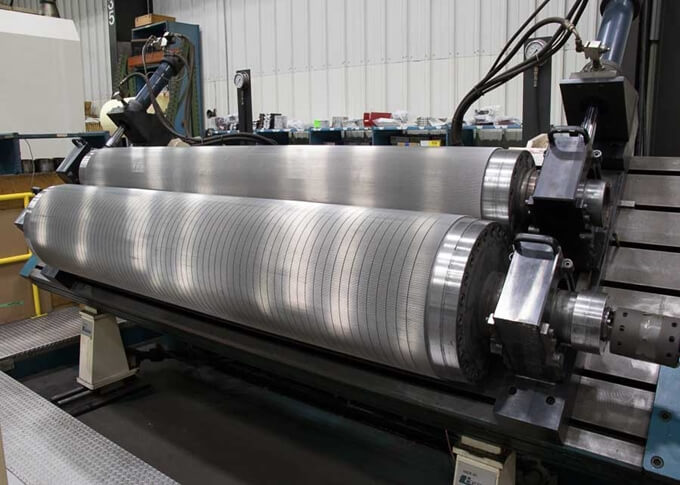

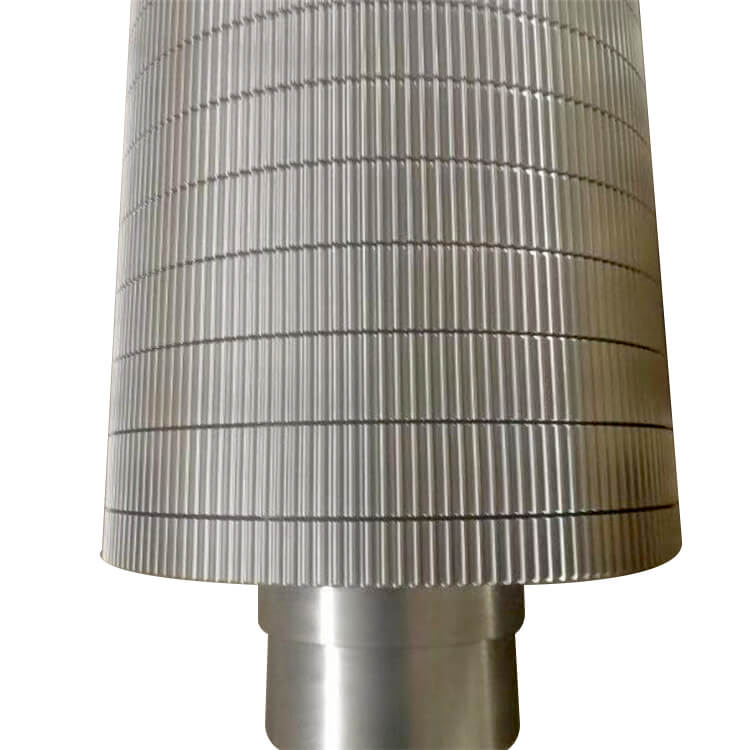

SunHong's corrugated roll is an important component for corrugated board production and the core of the single facer. The surface is precisely processed and has a series of concave and convex patterns. Under high temperature and high pressure, it shapes the paper into a good buffer and load-bearing capacity, which determines the waveform quality of the corrugated board.
Sun Hong's corrugated roll is made of 48CrMoA steel, which is treated by medium frequency quenching or nitriding to ensure that the hardness is above HRC55. The high precision process ensures that the life and wear resistance of the corrugated roll reach the international advanced level.
Corrugated Roll Precautions
Also note that the upper and lower corrugated roll and the pressure roller will resonate during operation, causing damage to the roller surface of the corrugated roll. It is recommended to check whether there are any loose screws before starting the machine each time.
In addition, it is best not to increase the pressure to the maximum when adjusting the corrugated roll pressure, which may easily cause wear on both sides of the corrugated roll.

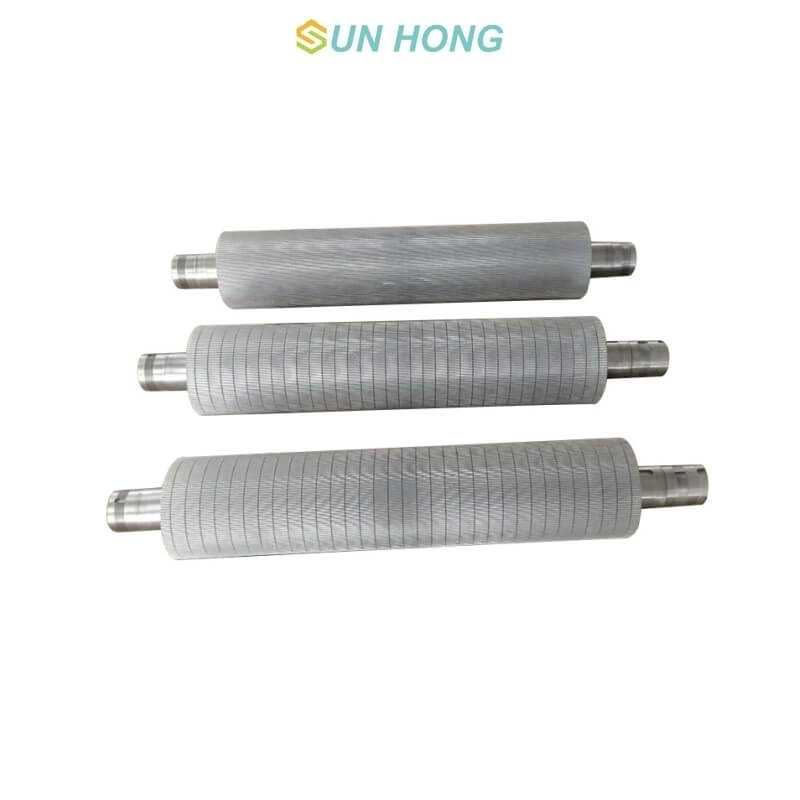

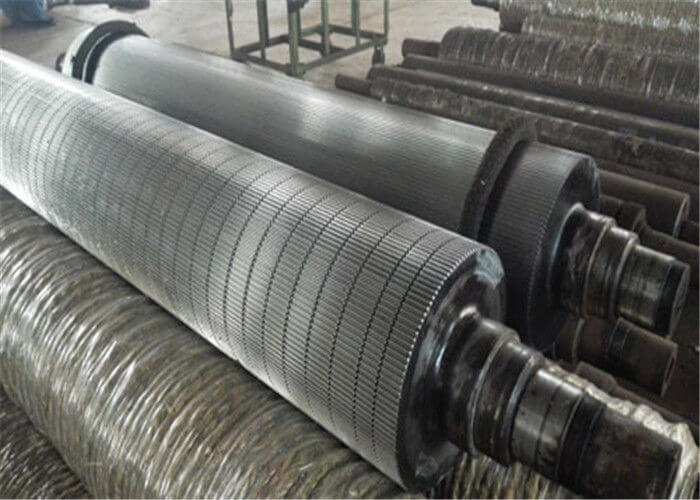

Sun Hong Corrugated Roll Series
| 1 Classification by tooth type: The common tooth types are a, AC, C, BC, B, be, E1, E2, F and G 2. Classification according to tooth shape: Common shapes are U-shape, UV partial U-shape, UV partial V-line, V-shape 3. Classification by surface hardness treatment: The common forms are surface medium frequency quenching, surface nitriding and surface laser 4. classification by surface coating type: The common forms are chrome plated corrugated roller and tungsten carbide corrugated roller. |
|
