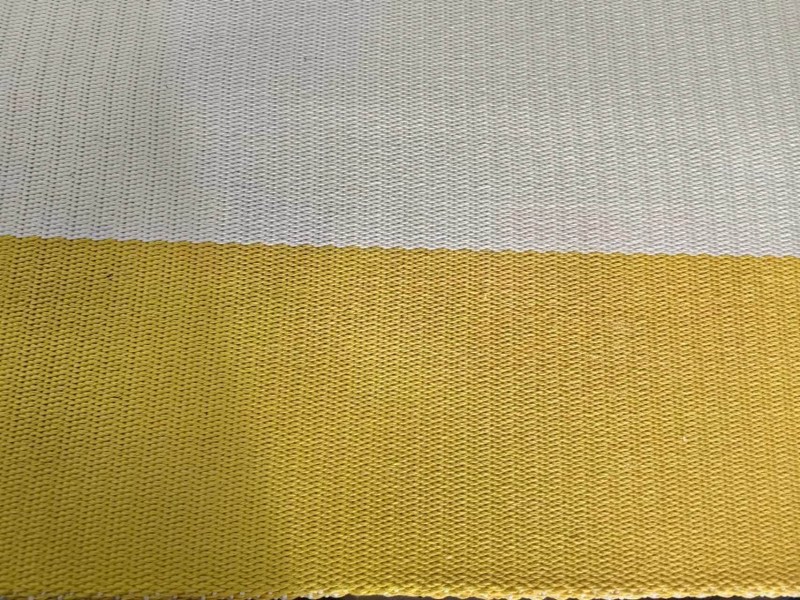

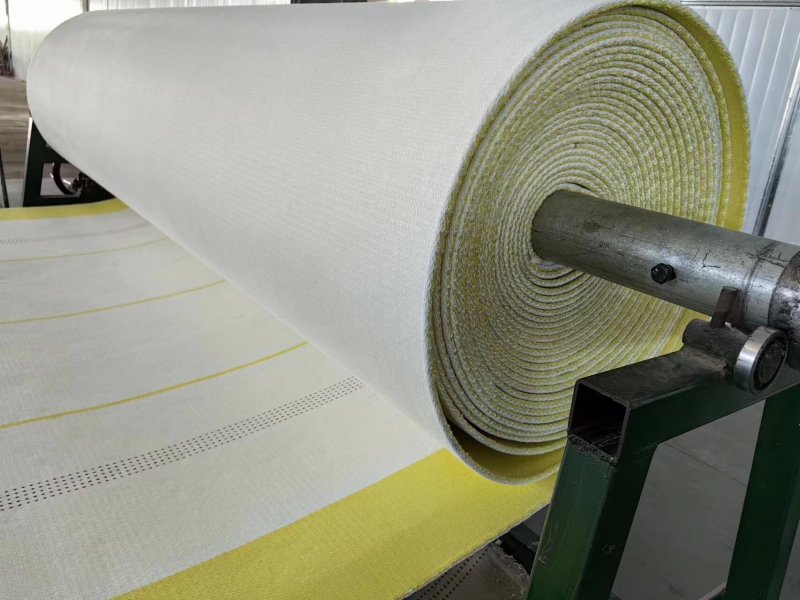

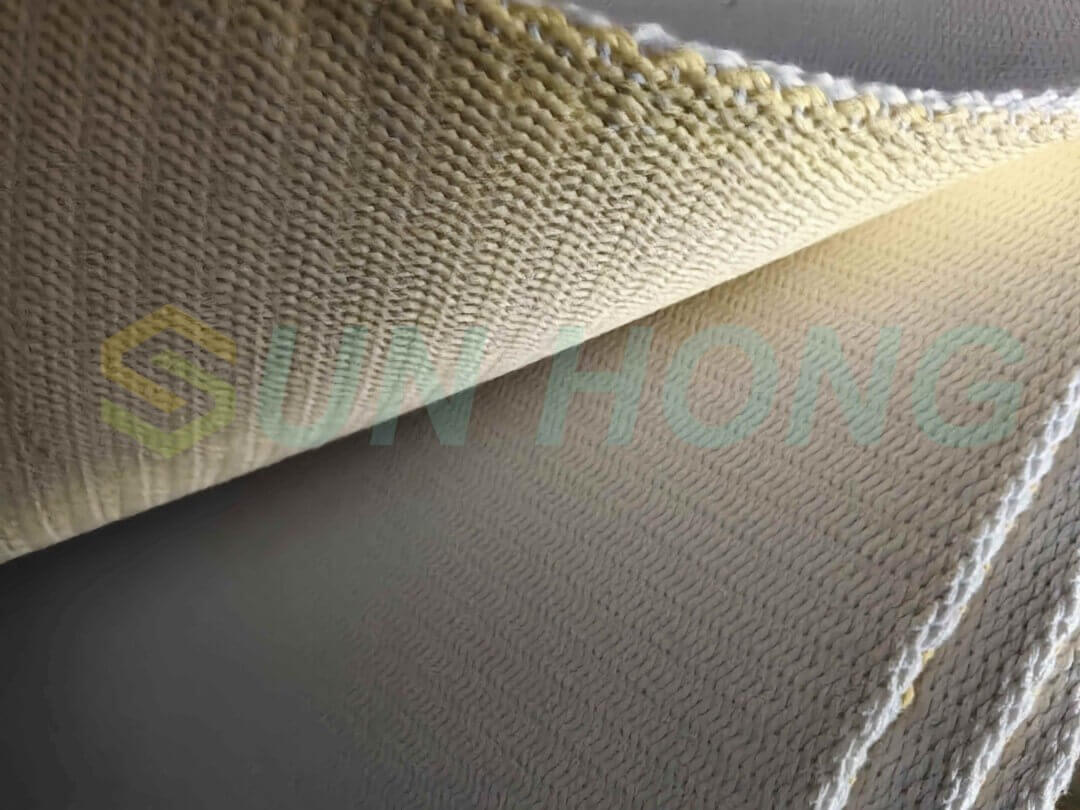

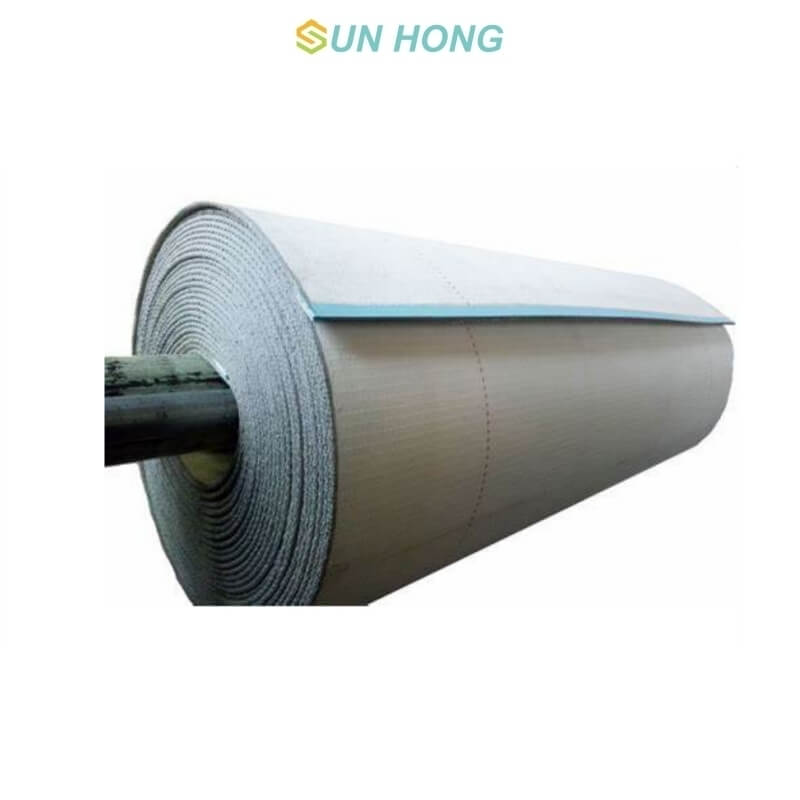

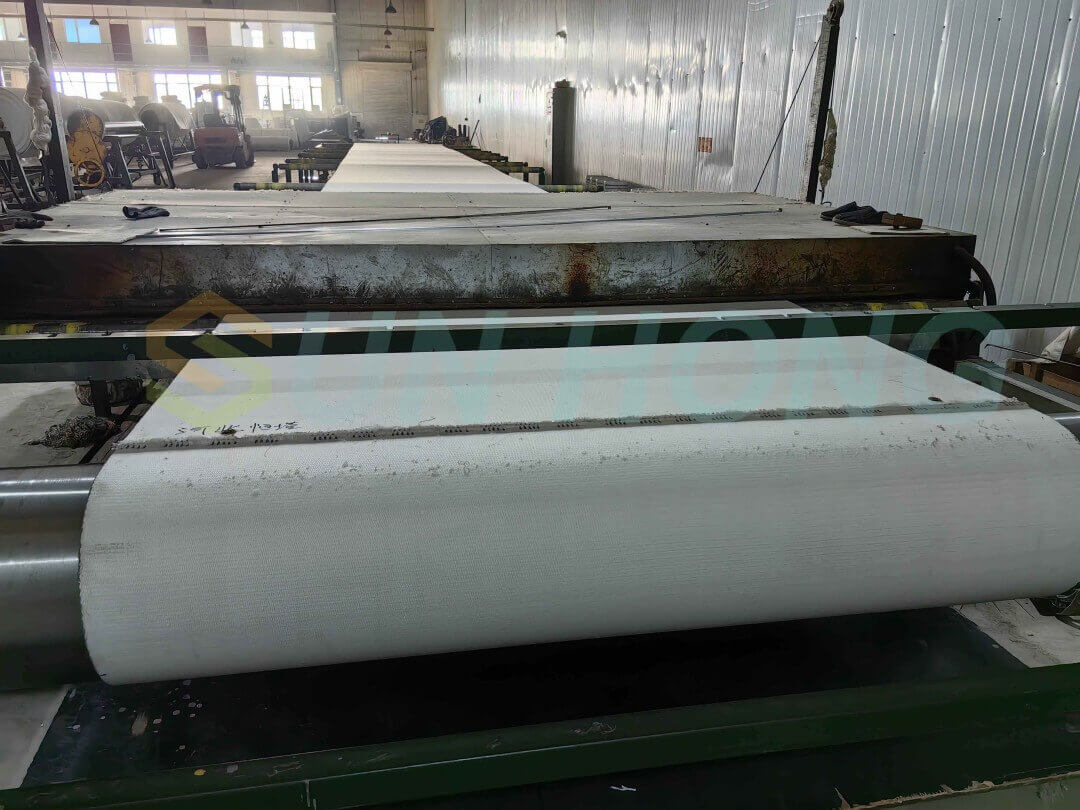

What is Woven Conveyor Belt?
Sun Hong's woven conveyor belt is specially used for material transportation in corrugated cardboard production lines. They are woven by looms using materials such as cotton yarn and chemical fiber blends. In the production process, woven conveyor belt undertake the important task of transporting products such as paper, corrugated paper and cardboard from one processing link to the next process.
Sun Hong's woven conveyor belt is made of high quality polyester and aramid Kevlar materials, ensuring excellent durability and heat resistance, greatly improving the production efficiency of corrugated cardboard production lines and reducing costs.
What is The Process of Woven Conveyor Belt?
Through the feeding device, raw materials or semi finished products are evenly fed into the conveyor belt. The conveyor belt will run at a constant speed to deliver materials to each link. After the process is completed, the finished product is transported to the designated location at the end of the conveyor belt. The whole process is automated and efficiently connected.
Features of Woven Conveyor Belt
(1) High wear resistance and stability. Sun Hong's woven conveyor belt can withstand long-term high-load operation without being easily damaged, ensuring stable operation of the system.
(2) The woven conveyor belt has a transversely stable polyester fabric, which can effectively avoid deformation or extension caused by long-term use.

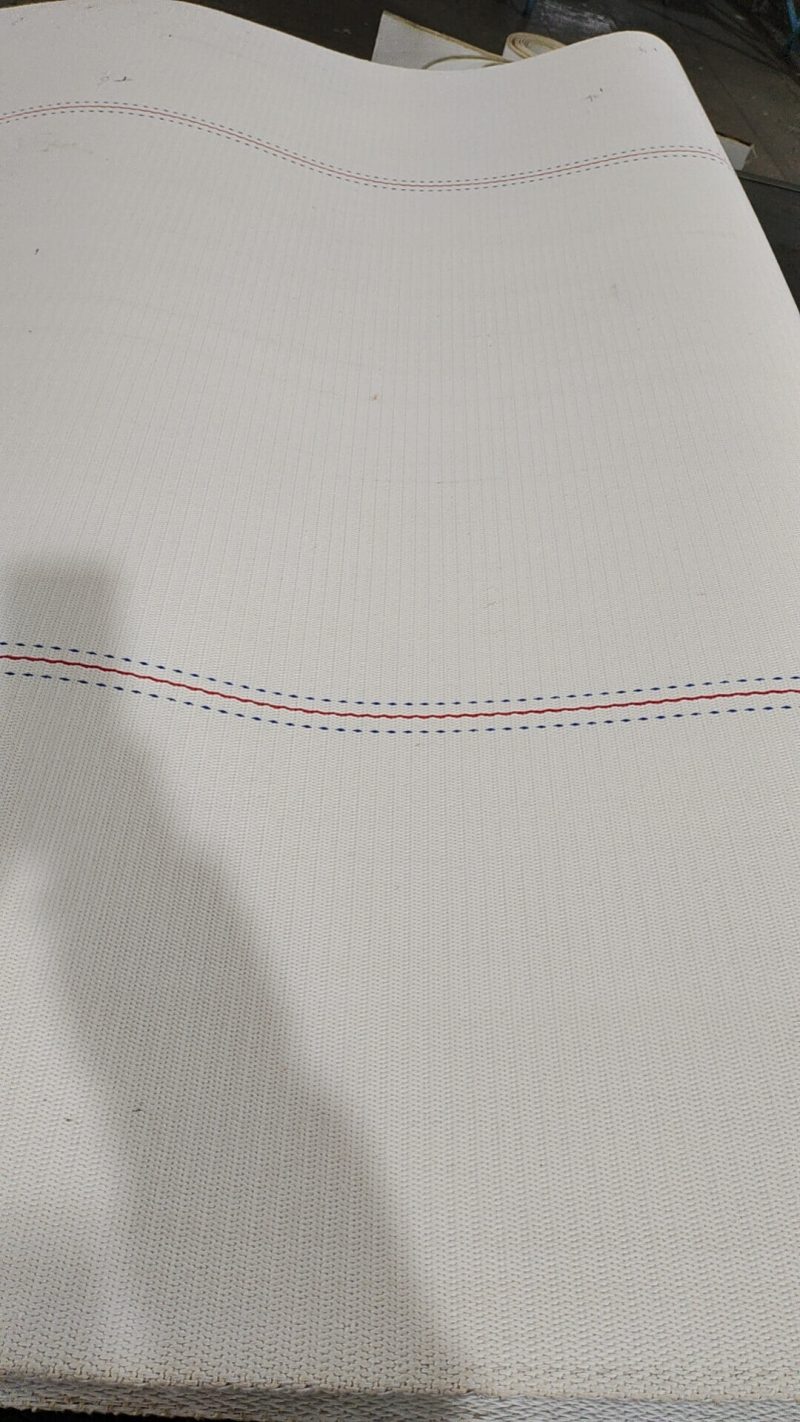

(3) Conductive wire is added to the woven conveyor belt to prevent paper scraps and dust from being adsorbed, ensuring the cleanliness of products and equipment.
(4) The friction coefficient of the woven conveyor belt is stable to prevent the material from slipping and tilting.
Purpose of Woven Conveyor Belt
Corrugated cardboard production line: used for cardboard conveying and hot pressing of single-sided and double-sided machines.
Packaging automation equipment: carton sealing and material handling of stackers.
|
|  |
Woven Conveyor Belt Technical Parameter
| Temperature resistence | Below 200°C, accept pressure for a short time 255 ° C is melting point |
| Tension | Warp 18KN/40mm Weft 19KN/40mm |
| Permeable Plate | 1.5 X103cm3/(cm2.min.Kpa) |
| Minimum bending radius | R70(mm) |
| Lifespan | 750Working days or 45million Meters carton board |
| Weight | 7.6+0.2kg/m2 |
