Do You Know Paper Feeding Wheel Use Which Position ?

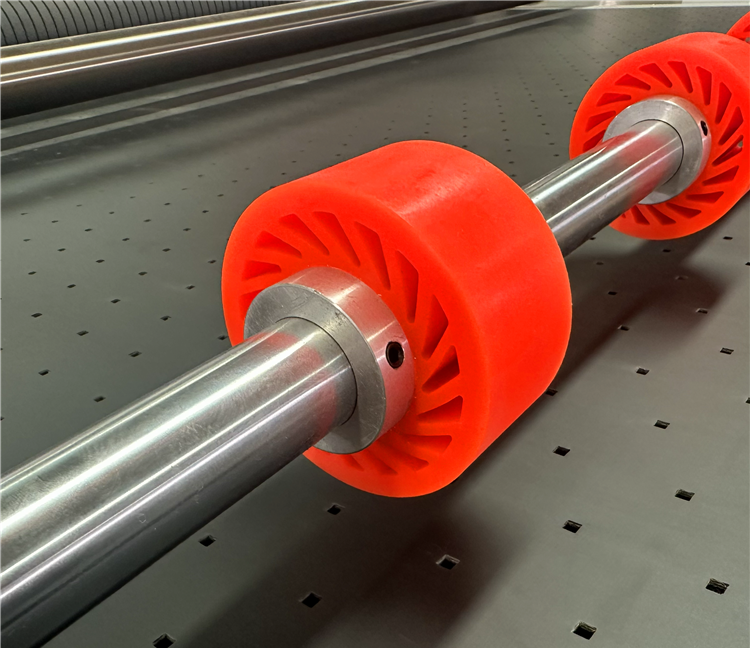

The paper feeding wheel is a wheel responsible for feeding, positioning, and conveying cardboard and paper forward. Paper feeding wheels are commonly used on corrugated cardbord production lines, printing machines, die-cutting machines, and box pasting machines.

Paper Feeding Wheel on Corrugated Cardboard Production Line

1.Single Facer Feed Section

After unfolding the base paper roll, smoothly feed the surface paper and core paper into the corrugated roller to ensure that they do not deviate or slip.

2.Bridge Conveyor Section

When stacking and transporting single-sided corrugated cardboard on overpasses, use paper feeding wheels to support, accelerate, and decelerate to prevent collapse and friction damage.

3.The Connection Part in front of Double Facer

Accurately align the single-sided corrugated cardboard with the surface paper and feed it into the double-sided machine to ensure that the bonding is not biased.

4.Paper Feeding Section in Front of The Cross Cutting Machine

Before entering the rotary/straight knife cross cutting machine, the cardboard is transported by a fixed length feeding wheel to ensure precise cutting length.

Post Processing Equipment for Cardboard Boxes

1. Printing slotting and die-cutting machine (most important, with the most paper feeding wheels)

-Front edge paper feeding wheel

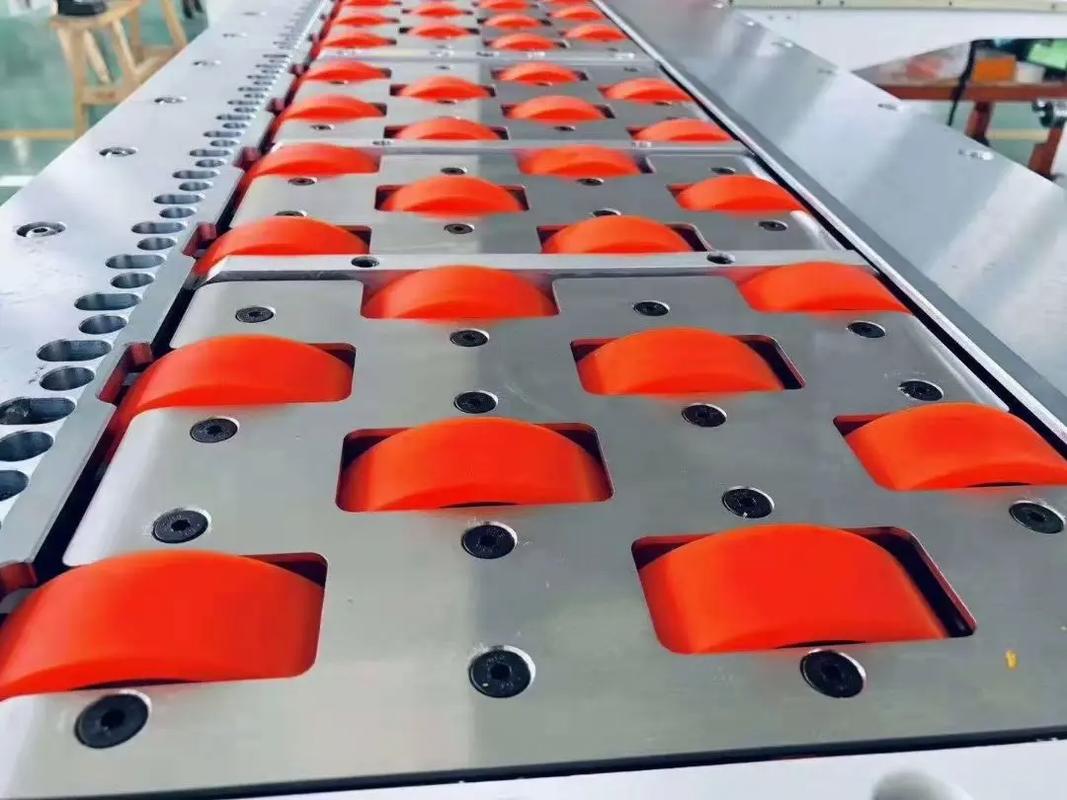

The most typical paper feeding wheel is to separate the stacked cardboard one by one and smoothly feed it into the printing unit.

-Printing section paper feeding wheel

When the cardboard enters the printing of various color groups, it is uniformly conveyed by the paper feeding wheel to ensure accurate overprinting.

-Slotting/die-cutting section paper feeding wheel

Continue to transport cardboard to ensure dimensional stability and no shaking.

2. Box Gluing Machine

Send the cardboard into the folding and gluing area.

The paper feeding wheel is responsible for positioning, pressing, and conveying to ensure neat folding.

3. Nail Box Machine

The paper feeding wheel sends the cardboard into the nail position to ensure even nail spacing.

4. Covering Machine/Laminating Machine

Accurately feed the single corrugated cardboard and surface paper into the bonding area, and the paper feeding wheel is responsible for aligning and feeding.
